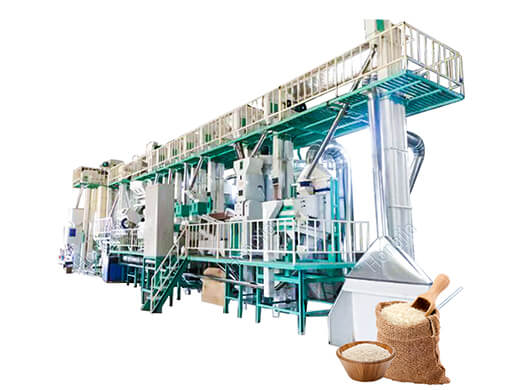

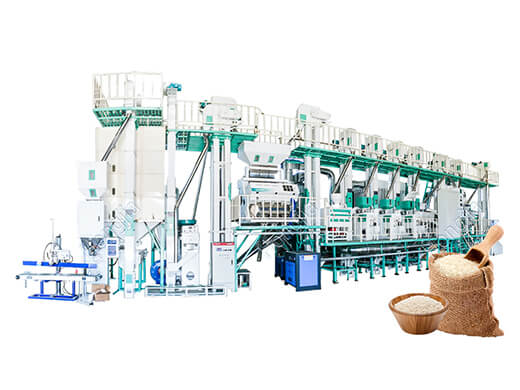

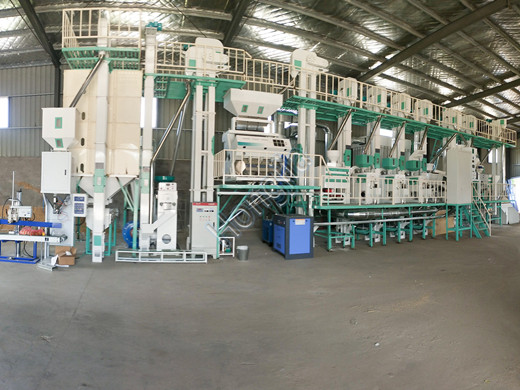

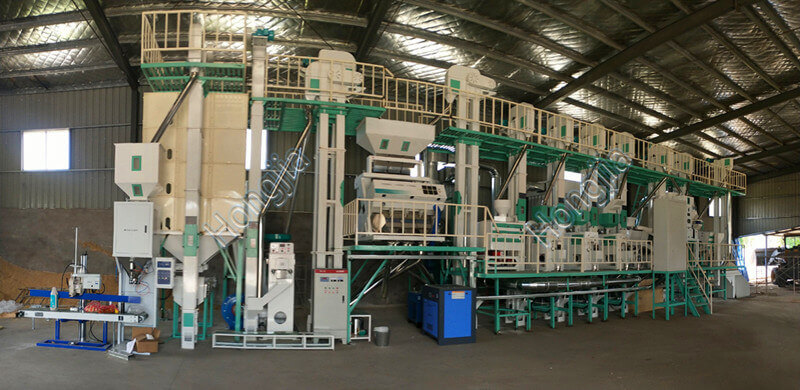

This 100T/D Rice Mill Plant is a large capacity rice mill processing project which can get 4-5ton final rice from paddy rice. It contains a full set of rice processing machines like the paddy rice cleaner machine, rice de-stoner machine, rice huller machine, paddy rice separator machine, rice mill machine, rice polisher machine, rice color sorter machine, rice packing machine, and rice elevators.
Our 100T/D Rice Mill Plant is a large-capacity rice mill processing project that can get 4-5ton final rice from paddy rice. It contains a full set of rice processing machines like the paddy rice cleaner machine, rice de-stoner machine, rice huller machine, paddy rice separator machine, rice mill machine, rice polisher machine, rice color sorter machine, rice packing machine, and rice elevators.
With full build install frame to make the whole set rice mill machine from clean step to final packing. Automatic control box to control different sections working, convenient, and can keep machine high working efficiency.
The 100ton/day complete rice processing plant is designed to produce high-quality rice. Meticulously tested on various quality parameters under the guidance of our experienced professionals, this large-scale complete rice processing line is recognized for its reliable performance, less maintenance, longer service life, and enhanced durability. We can also design the milling line according to the different requirements of different customers.
We can consider using vertical type rice whitener or horizontal type rice whitener, normal manual type husker or pneumatic automatic husker, different quantities on silky polisher, rice grader, color sorter, packing machine, etc., as well as suction type. You may contact us and advise your detailed requirements so we can design the plant for you according to your requests.

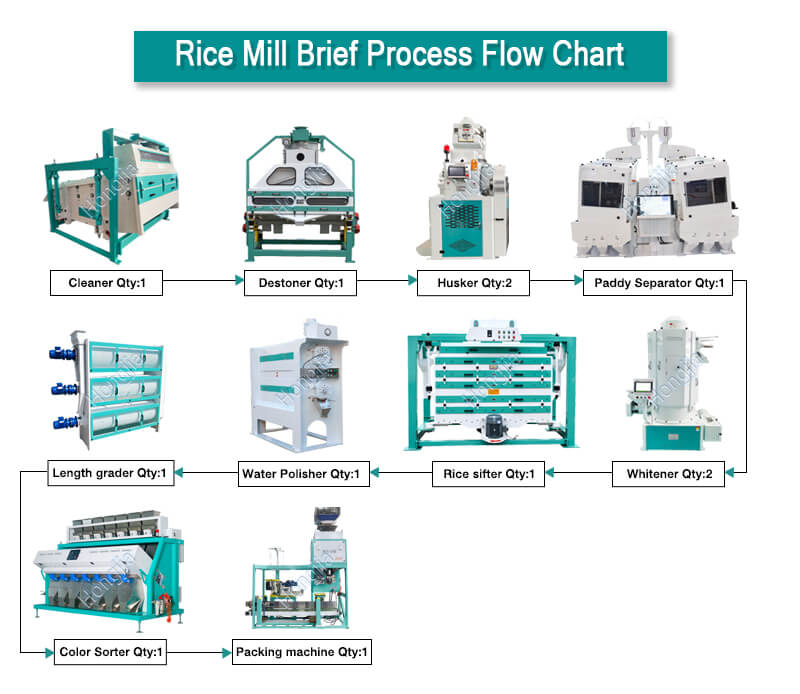

The 100T/D complete rice mill project can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.
Modern Complete Rice Milling System consists of:
Drum sieve cleaner, vibratory sieve, and de-stoner: other light impurities such as dust and debris, block, the stone should be removed as much as possible to reach a better cleaning effect.
Rice Huller: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice.
Rice separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.
Rice Whitener: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.
Rice polisher: rice polishing machine, which polishes the rice surface by spraying water, which facilitates the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice.
Rice Grading Machine:the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.
Rice Color Sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials out. The CCD signal while blanking has been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.
Rice Packing Machine: this rationed automatic weighing packing machine consists of a material box, a packing scale, a sewing machine, and a conveyor belt. It can cooperate work with all the model's rice mill production lines, and also for the packing bag capacity can choose 1-50kg per bag for your needs.
NO.
Name
Quantity
1
Drum sieve pre-cleaner
1
2
Vibrating cleaner
1
3
De-stoner
1
4
Rice husker
1
5
Double body paddy separator
1
6
Rice whiteners
3
7
Rice grader
1
8
Water polisher
1
9
Rice Color sorter
1
10
Packing and bagging machine
1
11
TDTG20/18 Bucket elevators
9
12
Bucket elevators
3
13
Control cabinet
1
The optional machines for 100t/d fully automatic rice mill plant:
1. This machine integrates multiple functions such as stone removal, vibration, impurity removal, hulling, rice milling, and sieving. Fully automatic operations from paddy to white rice.
2. The new fully automatic rice machine with gravity paddy separator, is easy to operate and convenient
3. Neat and beautiful structure, low energy consumption, convenient operation and maintenance, and easy disassembly and assembly of all equipment
4. The rice milling part of the combined rice mill plant adopts negative pressure rice milling technology, which has low rice temperature, less chaff, and less broken rate

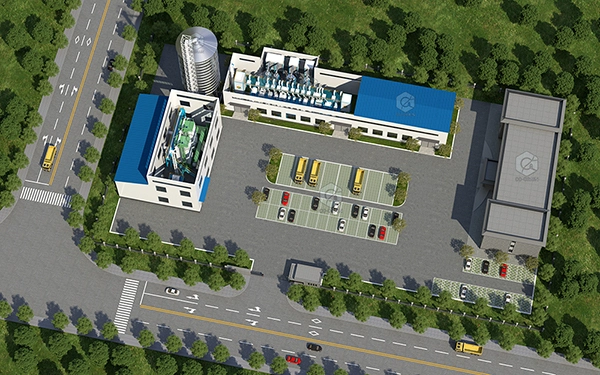

5. Designed according to advanced technological requirements, the complete set of rice mills is arranged in a "one" shape, and the main operations are concentrated on one side, which is convenient for operation
Rice Mill Machine Application
Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome, contact us for the details, thanks.
