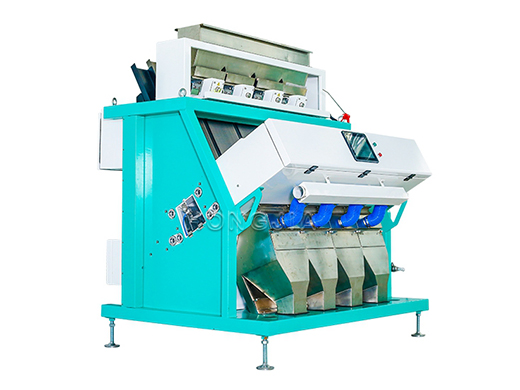

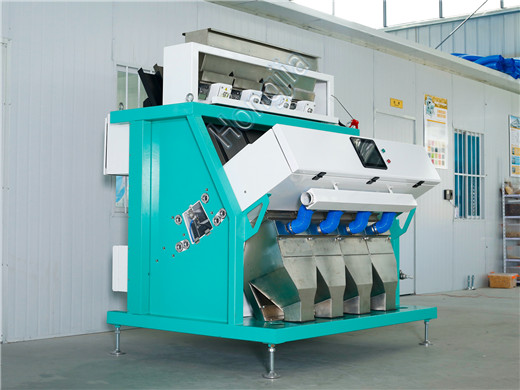

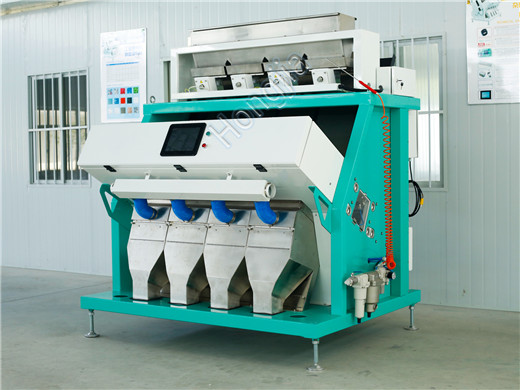

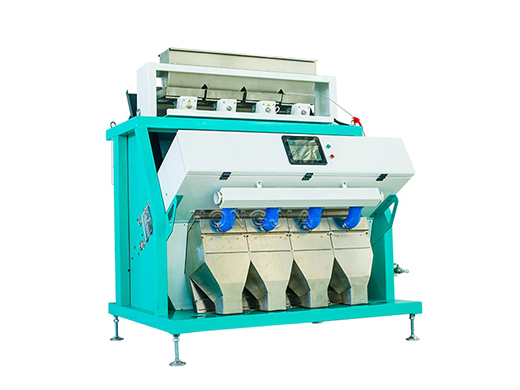

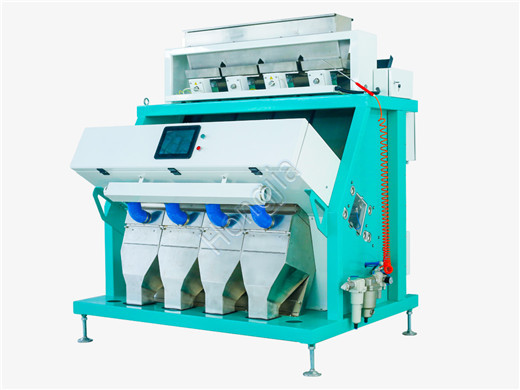

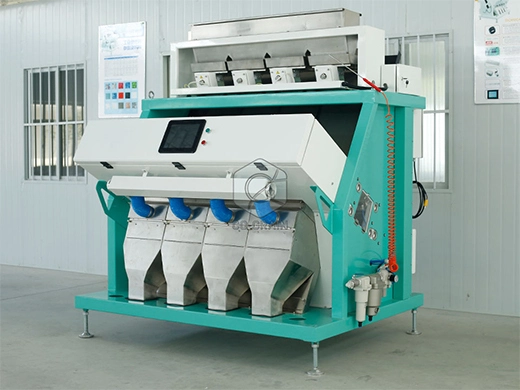

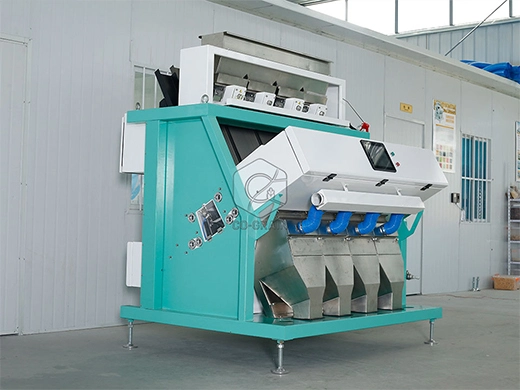

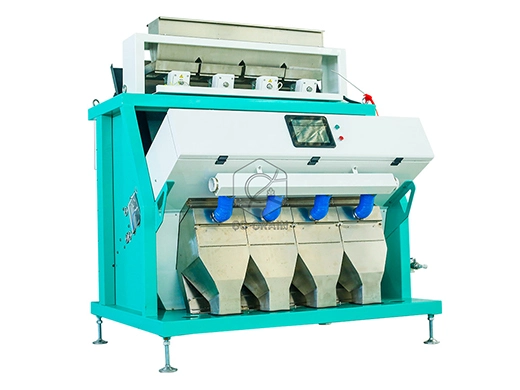

SX-256 CCD color sorter is a professional machine used for separating the different colors impurity from the materials to make high quality and high purity products. It choose a large number of world-class enterprises produced 2048 pixel linear array CCD light, electrical parts, stable and reliable work.

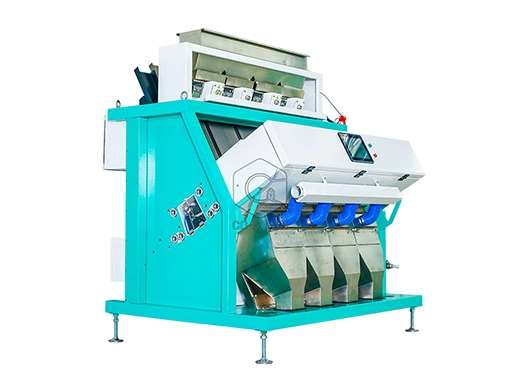

SX-256 CCD rice color sorter is a professional machine used for separating the different colors of impurity from the materials to make high quality and high purity products. It chooses a large number of world-class enterprises to produce 2048 pixel linear array CCD light, electrical parts, and stable and reliable work. It is a key machine in the rice mill plant to obtain higher quality rice.
It has a high accuracy of the product color selection, especially for the rice which has a small lesion in the finished rice, and rice ditch skin particles have unique identification and removal capability. The flat slideway of the product is also suitable for larger particles in the color selection. In addition, the product is also equipped with long life and good consistency of high-speed solenoid valve.
1. The machine uses 2048 pixel new high-end CCD sensor, with a high-quality optical lens, which can be observed from the front and back in the direction of the material surface color and shape differences, identify material 0.3 x 0.15 mm nuances;
2. This machine is a fully digital circuit, fast response, data processing ability, ensure the whole machine stable and reliable performance;
3. The machine with a variety of color selection modes, it can remove yellow and black at the same time. The users can set targets according to the actual situation of the selected item. Accurate control of color sorting accuracy of the machine, increasing the efficiency of color sorters;
4. The machine adopts a color big screen touch screen, clear and beautiful, friendly interface, user-friendly operation;
5. The front panel of the machine cabinet is provided with a light indicating lamp which displays the working state of the machine, which is convenient for the user to master the working condition of the machine in time;
6. Precision optical components and control system installed in the locked closed chassis, both to protect the safety, but also to avoid dust, humidity, and other interference factors, to ensure that the machine in different working environment color election effect is always stable;
Used to separate impurities in corn, peanuts, lentils, peas, coffee beans, red beans, black beans, mung beans, soybean, Lycium Chinensis, and white kidney beans and produce a fine product.
For the rice color sorter machine, we have different models with different capacities suitable for different clients' needs, also if clients have special requirements for the machines, we can customize them for you.
| Model | Capacity(t/h) | Sorting accuracy | Rejection rate | Weight (kg) | Power(kw) | Dimension(mm) |
| SX-64 | 0.3-0.7 | ≥99.99 | ≥30:1 | 280 | 0.75 | 780*1527*1543 |
| SX-128 | 1-4 | ≥99.99 | ≥30:1 | 450 | 1.1 | 1250*1535*1832 |
| SX-192 | 2-6 | ≥99.99 | ≥30:1 | 600 | 1.6 | 1620*1535*1832 |
| SX-256 | 3-8 | ≥99.99 | ≥30:1 | 750 | 2.3 | 1855*1540*1852 |
| SX-320 | 4-10 | ≥99.99 | ≥30:1 | 900 | 2.9 | 2244*1540*1852 |
| SX-384 | 5-12 | ≥99.99 | ≥30:1 | 1100 | 3.1 | 2595*1540*1852 |
| SX-448 | 6-14 | ≥99.99 | ≥30:1 | 1350 | 3.9 | 2905*1540*1852 |
| SX-512 | 7-16 | ≥99.99 | ≥30:1 | 1500 | 5 | 3025*1540*1852 |
| SX-640 | 9-20 | ≥99.99 | ≥30:1 | 1800 | 6.5 | 3750*1540*1852 |
| SX-768 | 11-24 | ≥99.99 | ≥30:1 | 2100 | 7.0 | 4430*1540*1852 |
